E-manage at a Glance

Product Features >>

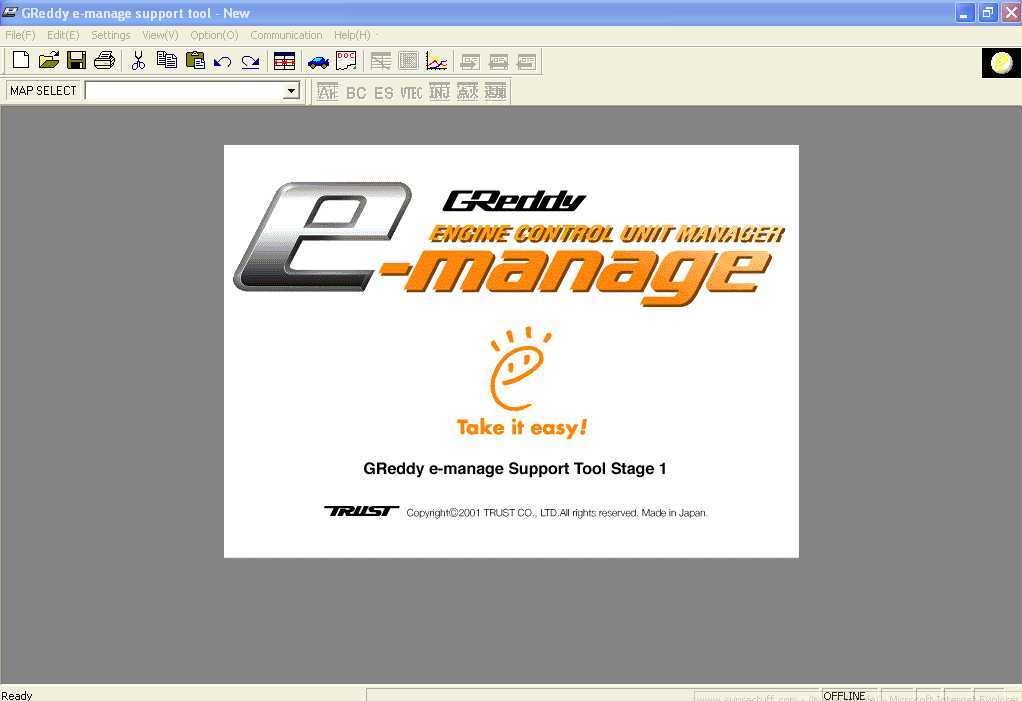

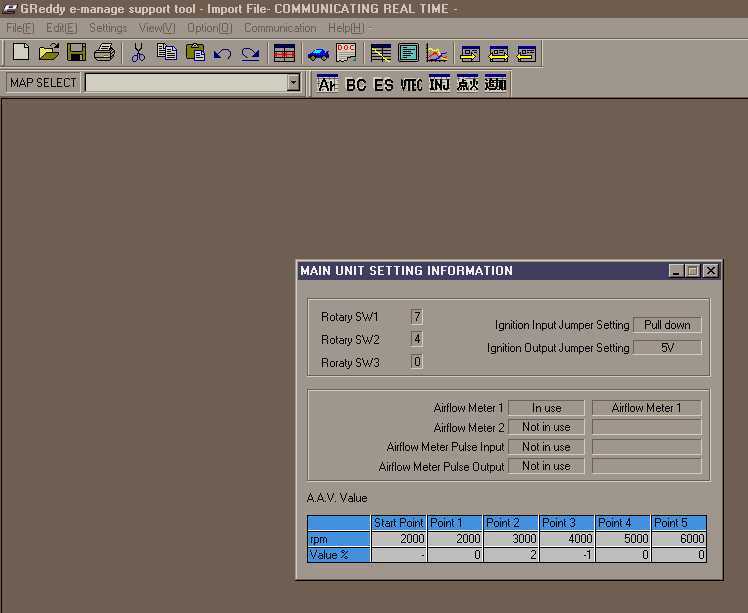

Opening Screen Main Setting Screen	Logging & Playback	VTEC Options

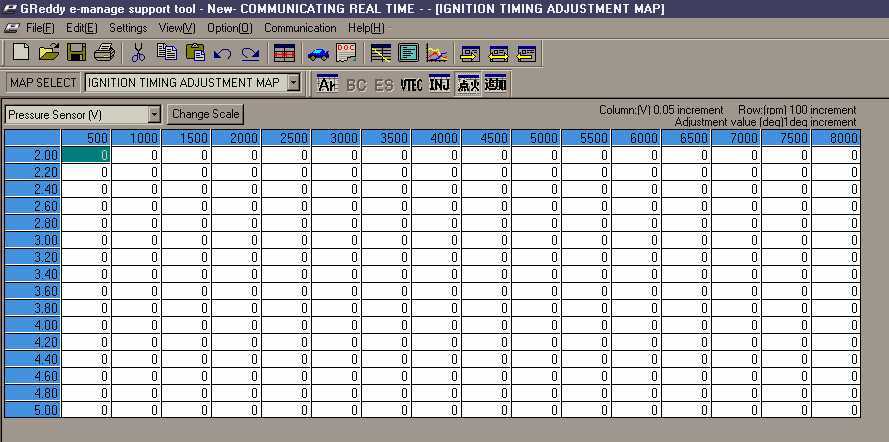

	16x16 Ignition Map	16x16 Air Flow Adjustment Map

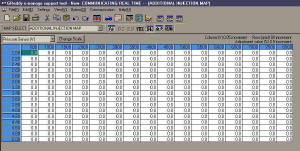

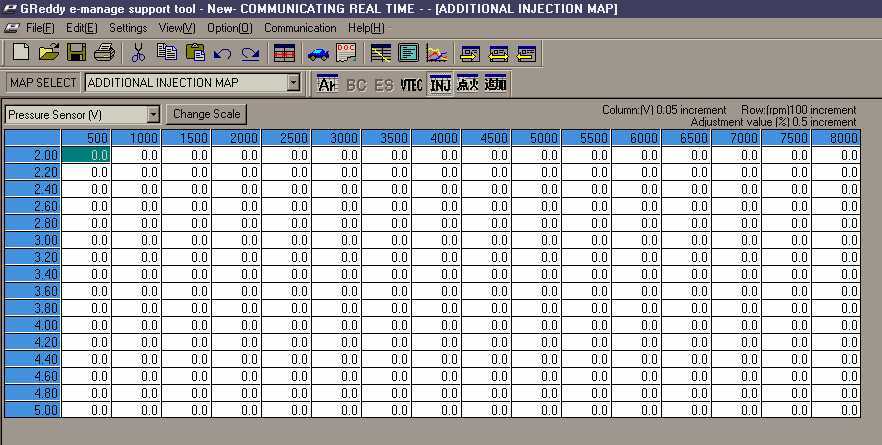

	16x16 Injectors Map	16x16 Sub Injector Map
	Anti Engine Stall Setting	Boost Cut Option

---

Product Features:

This product will allow the tuner to program GReddy e-Manage functions, by linking the e-Manage and a Windows based PC. This product is only for the vehicles equipped with GReddy e-Manage.

Features:

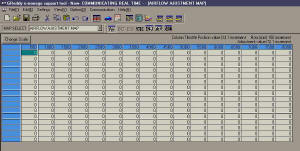

• Air Flow Adjustment Map

  This 16x16 (rpm x throttle position) table is used to fine-tune the input signal of the Air Flow Meter or MAP Sensor to the ECU for fuel enrichment.

• Upgrade Injectors

  Controls upgrade injectors. (up to 150% larger than factory)

• Upgrade Airflow meters

  Controls upgrade Airflow meters.

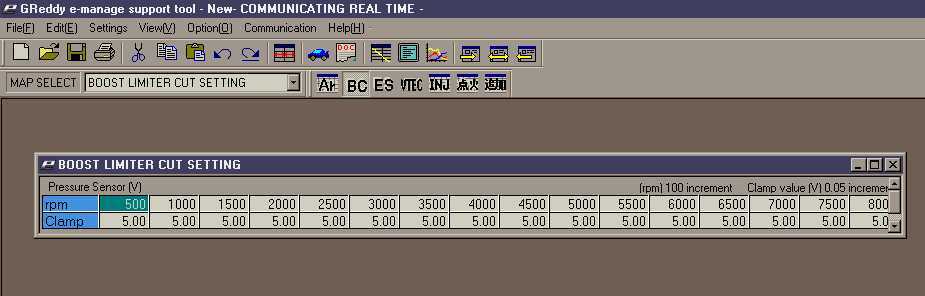

• Boost limiter cut feature

  Eliminates factory boost limiter.

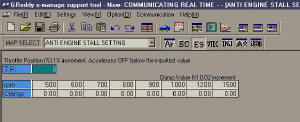

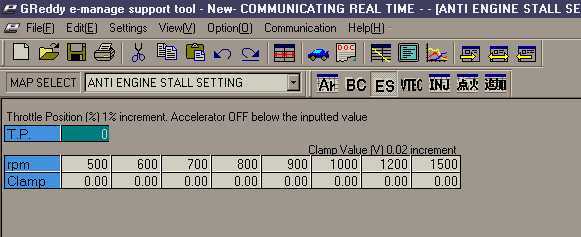

• Anti Engine Stall feature

  This is used to stabilize the rough idle due to turbo compressor surge, blow-off valve vented out to the atmostphere or use of a high lift camshaft.

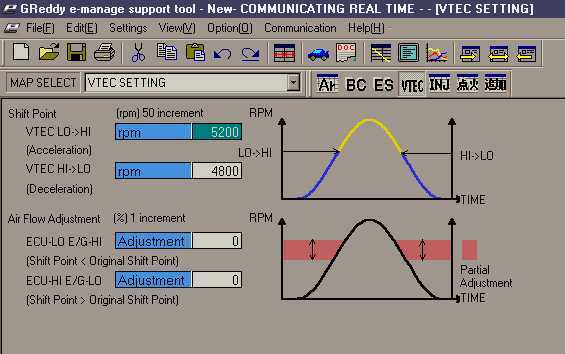

• VTEC Setting

  This is used to set the VTEC setting without going in to the Main Unit.

• Map Trace feature

  This allows the tuner to pin point the current location on any map table.

• Real Time Display feature

  This allows the tuner to monitor the engine condition in real time.

• Real Time Communication

  This allows the PC and e-Manage to communicate at real time. Any changes made on the computer screen is sent to e-Manage within 2-3 seconds.

• Data Logging feature

  This allows the tuner to view the data recorded and saved during the real-time mode in graph form.

• Security Setting feature

  This allows the tuner set up a password to apply a security lock to the data in the main unit.

Optional Parts:

• Harness Kit (Injector control)

  This harness is used when controlling main injectors or sub injectors

• Harness Kit (Ignition Timing Control)

  This harness is used when controlling the ignition timing.

• GReddy Pressure Sensor

  GReddy pressure sensor can be used for the scale of each Map table. This is used when the factory system exceeds the Air Flow Meter or MAP sensor capacity.
